3D & SimulationParticles

Image Emitter

Spawns particles from a picture: brightness or alpha sets the density and the pixel sets the colour, with optional optical flow.

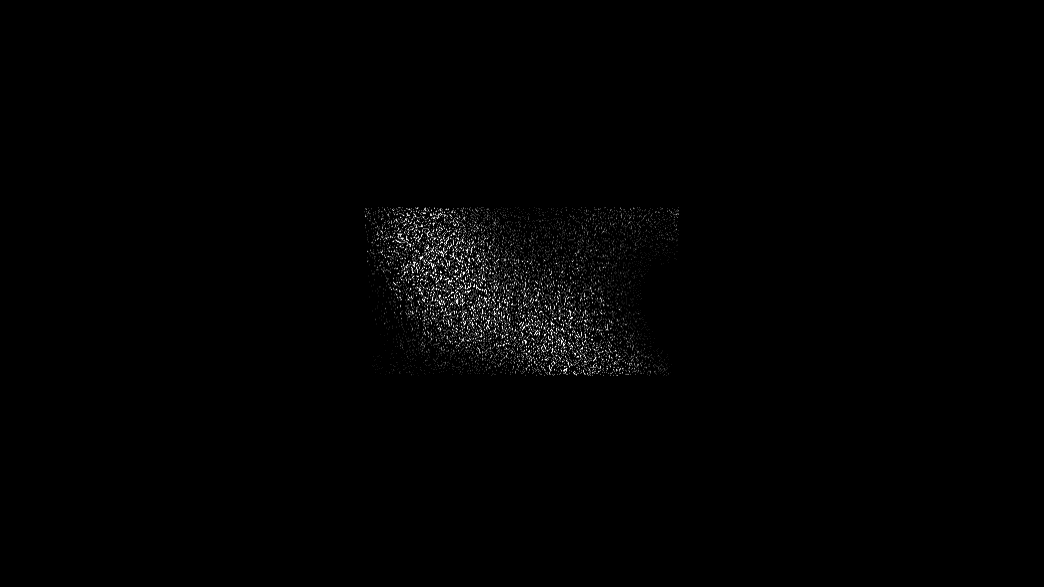

The Image Emitter node turns a texture into a spawn plane. Bright or opaque pixels emit, each particle takes the pixel colour, and optical flow can make the cloud follow motion in a video.

Image Emitter

  • Emit From luminance, alpha, or both
  • Use Image Color and Use Image Alpha carry the source into the particles
  • Optical Flow (Motion) pushes particles along the video's motion
  • Found in the node graph under Particles → Emitters

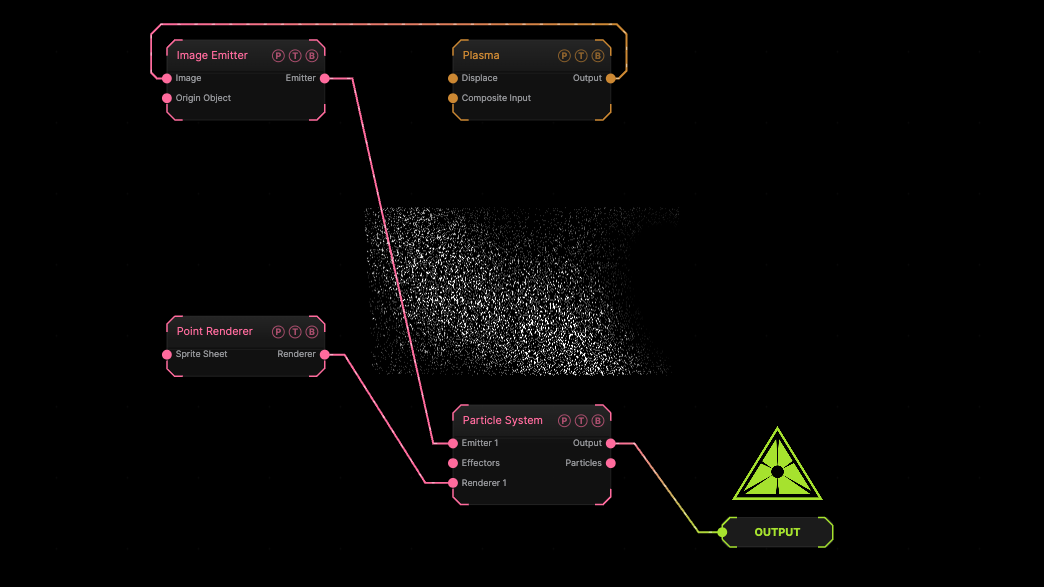

Example patch — drag onto the app to load

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. A Plasma generator feeds the emitter.

Inputs and outputs

Image Emitter node

PortTypePurpose
ImageTextureThe picture or video.
Origin ObjectSurfaceA Null to parent to.
EmitterEmitterWire it into the Particle System's Emitter port.

Parameters

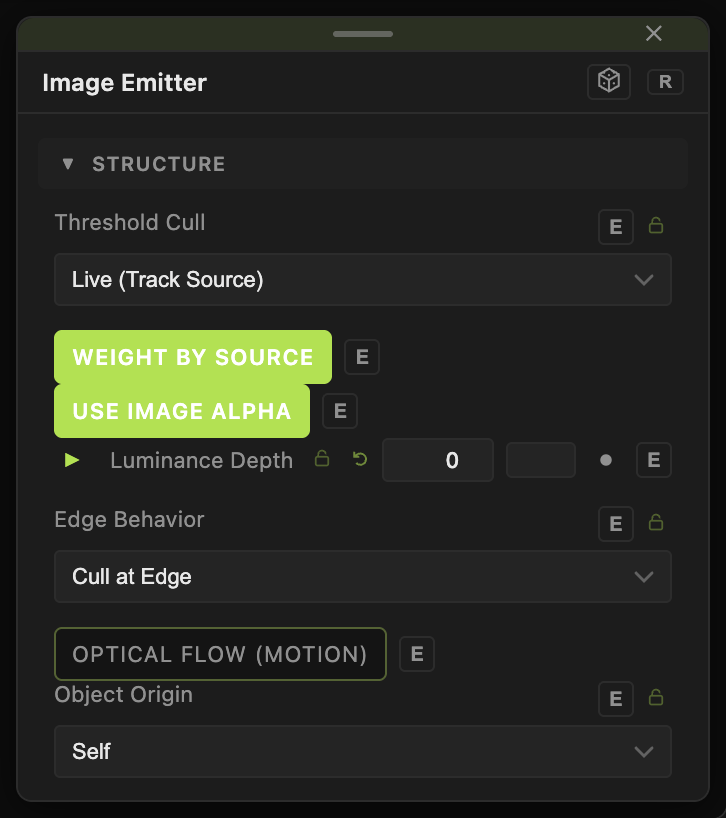

Image Emitter parameters
  • Plane Size (0.5–60, default 16).
  • Emit From — Luminance (default), Alpha, or Luminance × Alpha. Threshold (default 0.1) and Threshold Softness (default 0.25) set the cut.
  • Threshold Cull — Live (Track Source) kills particles when their pixel goes dark; Emission Only (Persist) keeps them.
  • Color Boost (0–4, default 1), Weight by Source (default on), Use Image Color (default on), Use Image Alpha (default on).
  • Luminance Depth (0–20, default 0) — pushes bright pixels forward in Z.
  • Flip Y, Edge Behavior (Cull at Edge or Keep (Splatter)).
  • Optical Flow (Motion) (default off) with Flow Downsample (1/4 recommended), Motion Strength (default 1), Apply Mode (Velocity (Stick) or Force (Inertia)), Stickiness (default 18), Motion Smoothing (default 0.4).
  • Position X / Y / Z.

Every slider has a per-parameter animation bar, so it can be animated, audio driven, or MIDI mapped.

Examples

Live video dust — a Webcam into Image, Optical Flow (Motion) on, Threshold Cull Emission Only.

Troubleshooting

Particles vanish where the picture is dark — that is Threshold Cull Live. Switch it to Emission Only.
