Point Renderer

Flat discs, or sprite-sheet cells when a sheet is wired, with softness, shadows, echo trails, and four colour modes.

The Point Renderer draws each particle as a flat disc facing the camera. It is the cheapest renderer and the one to start with.

Point Renderer

  • Point / Sprite Size, Softness, Color Mode
  • A wired Sprite Sheet turns the discs into cells
  • Echo smears the frame; for real ribbons use the Trail Renderer
  • Found in the node graph under Particles → Renderers

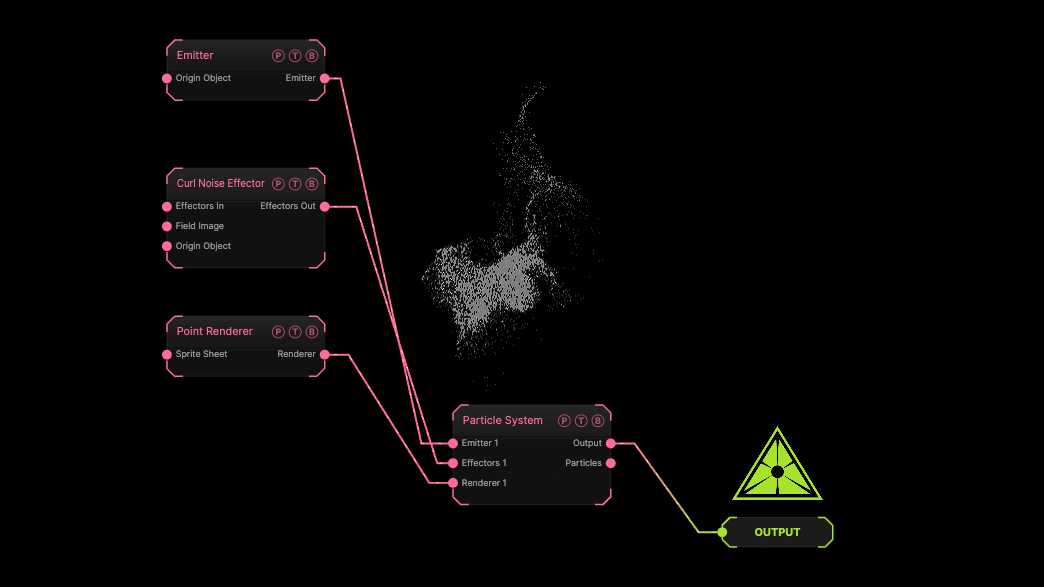

Example patch — drag onto the app to load

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. A sphere emitter with a curl effector, drawn as default discs.

Inputs and outputs

Point Renderer node

PortTypePurpose
Sprite SheetTextureA texture used as the sprite sheet.
RendererRendererWire it into the Particle System's Renderer port.

Parameters

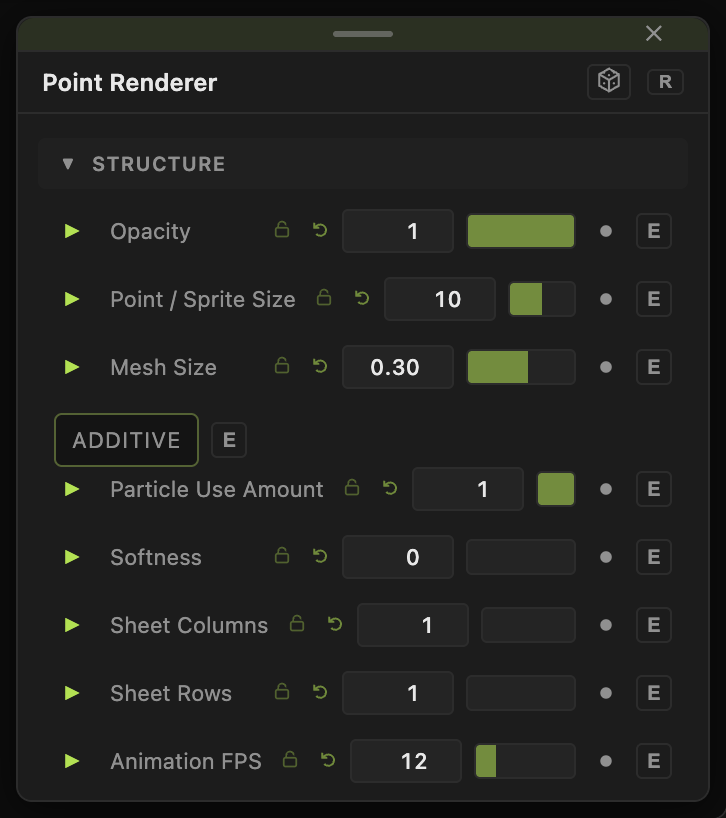

Point Renderer parameters
  • Opacity (0–1, default 1), Point / Sprite Size (1–100, default 10), Size Random (0–1, default 0.6).
  • Color Mode — Single (default), Gradient, Emitter Image, or Colorize Effector; Color (default #b8b8b8).
  • Gradient By and Gradient Cycles (default 1) for the Gradient mode, with Edge Softness.
  • Additive (default off), Echo (default off) with Echo Decay (0.5–0.99, default 0.9).
  • Shadows (default off), Shadow Strength (default 0.6), Shadow Bias.
  • Softness (0–1, default 0) — feathers the disc edge.
  • Particle Use Amount (0–1, default 1) — the share of particles this renderer draws.
  • Shadow Mode — Depth Map (default) or Volumetric, with Absorption (0–8, default 1) and Shadow Steps (1–32, default 12).

Sprite sheet

  • Sheet Columns and Sheet Rows (1–32, default 1), Animation FPS (0–60, default 12), Playback (Loop default, Ping-Pong, Play Once (Life), Random Cell), Random Start Frame, Frame Offset, Rotation Random.

Every slider has a per-parameter animation bar, so it can be animated, audio driven, or MIDI mapped.

Examples

Soft fog — Softness 1, Additive on, Opacity 0.3.

Troubleshooting

Colorize Effector has no effect — set Color Mode to Colorize Effector.

Related

Sprite Renderer

Built around sprite sheets.

Trail Renderer

Real ribbons.

Colorize Effector

Tints each particle from a gradient driven by an attribute such as life, position, or density.
