Range Remap
Clamps the input to a range and rescales it onto an output range.
The Range Remap node maps an input window onto an output window.
- In Lower / In Upper and Out Lower / Out Upper
- Found in the node graph under Modifiers → Value & Math

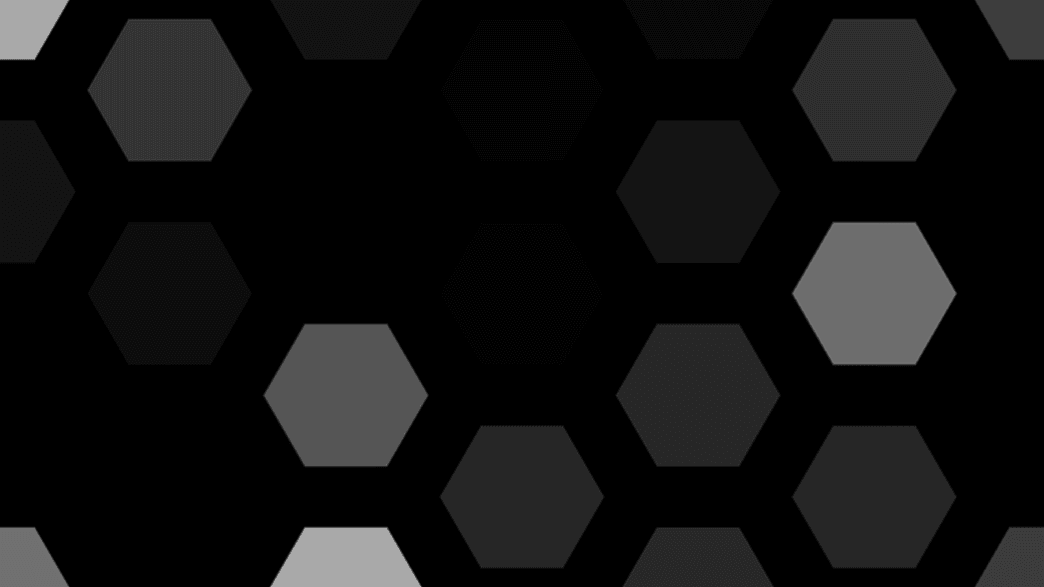

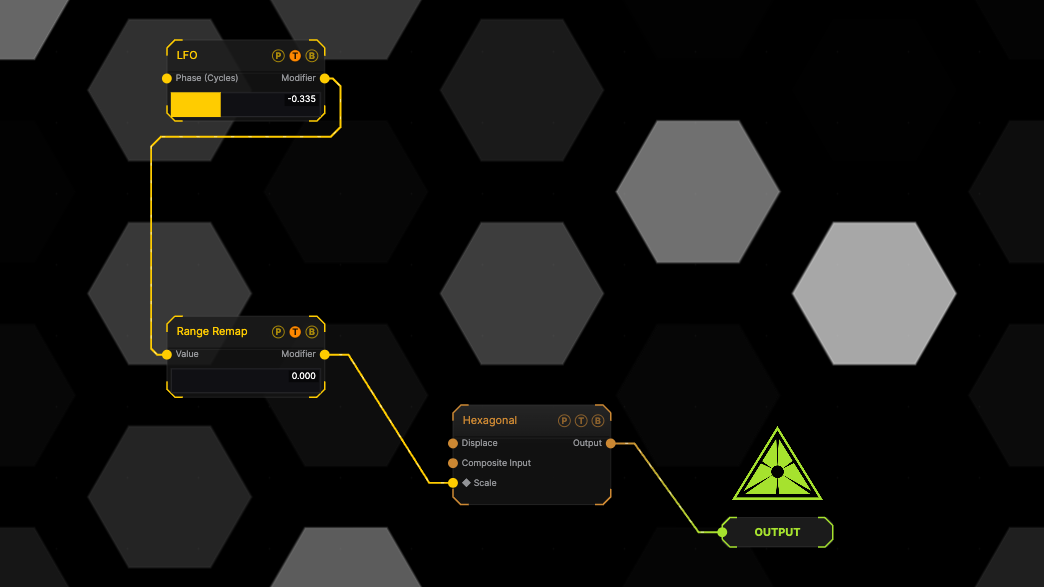

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. The modifier drives the Scale of a Hexagonal generator; the meter on the node shows its live value.
Inputs and outputs
| Port | Type | Purpose |
|---|---|---|
| Input | Modifier | The value to process, 0–1 unless the source says otherwise. |
| Modifier | Modifier | Drag it onto a parameter row, or wire it into another modifier's input. |

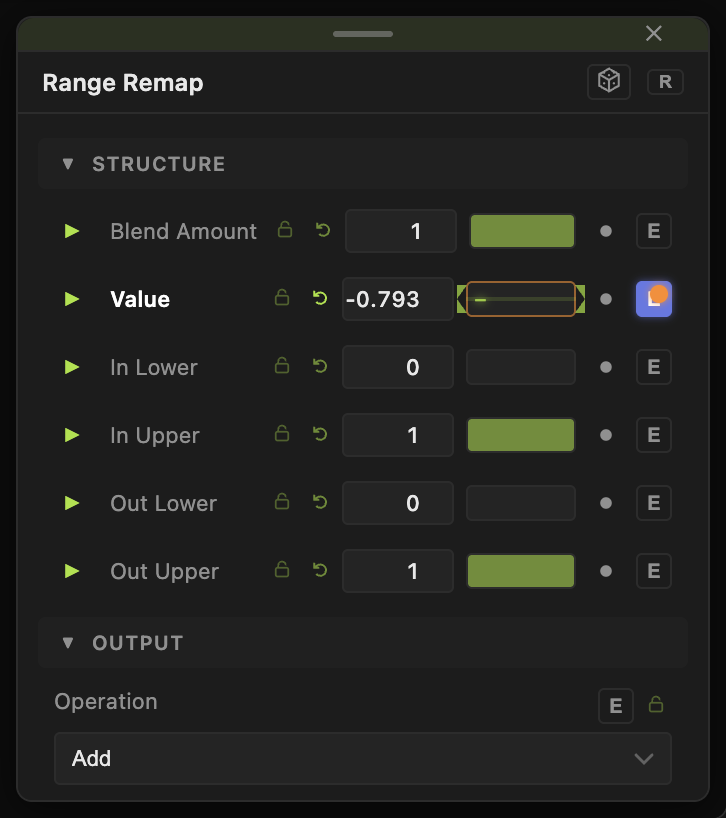

Parameters
- Value (0–1) — the input when nothing is wired.
- In Lower (default 0), In Upper (default 1) — the input window; values outside are clamped.
- Out Lower (default 0), Out Upper (default 1) — the output window. Swap them to invert.
Every slider has a per-parameter animation bar and can itself be driven by another modifier.
Examples
Use only the loud part — a Sound modifier in, In Lower 0.4, so quiet passages give 0.
Troubleshooting
The parameter does not move — check the bound parameter's Operation at the port. At Multiply against a value of 0 the result stays 0.
