Animation & ControlModifiers
Smooth
A one-pole low-pass filter toward the input.
The Smooth node slows a jumpy signal down. Higher Smoothing means the output takes longer to reach the input.
- One control, Smoothing
- Found in the node graph under Modifiers → Value & Math

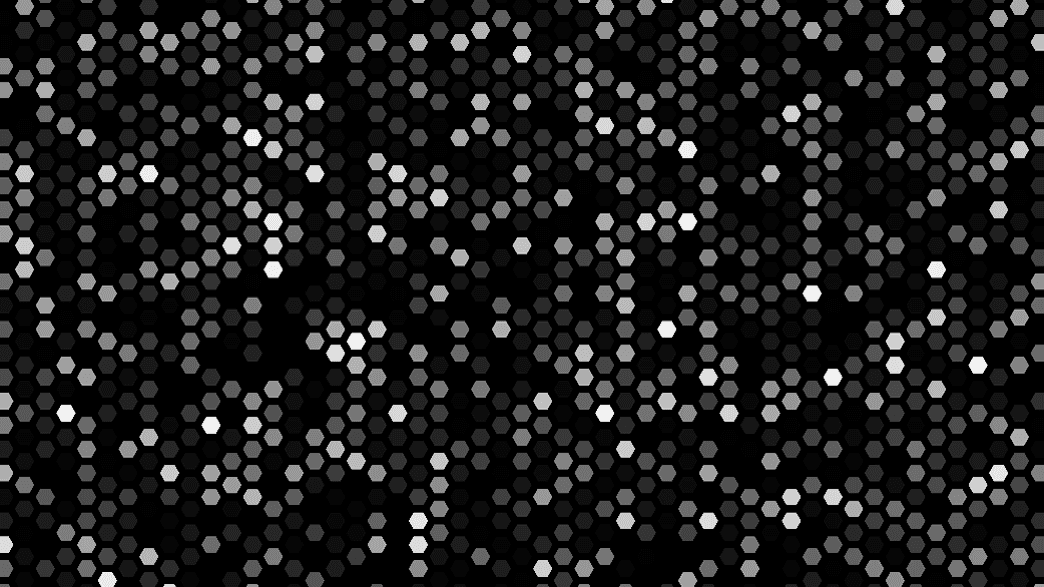

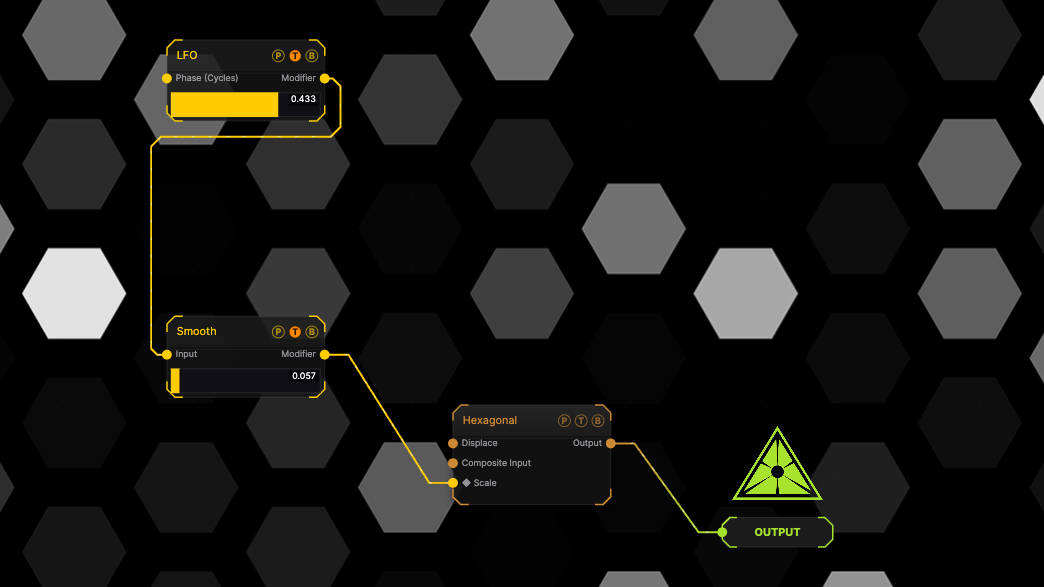

The image on the right is the example patch itself. Drag and drop it onto the app, or load it with File → Load, to open the full graph. The modifier drives the Scale of a Hexagonal generator; the meter on the node shows its live value.
Inputs and outputs
| Port | Type | Purpose |
|---|---|---|
| Input | Modifier | The value to process, 0–1 unless the source says otherwise. |
| Modifier | Modifier | Drag it onto a parameter row, or wire it into another modifier's input. |

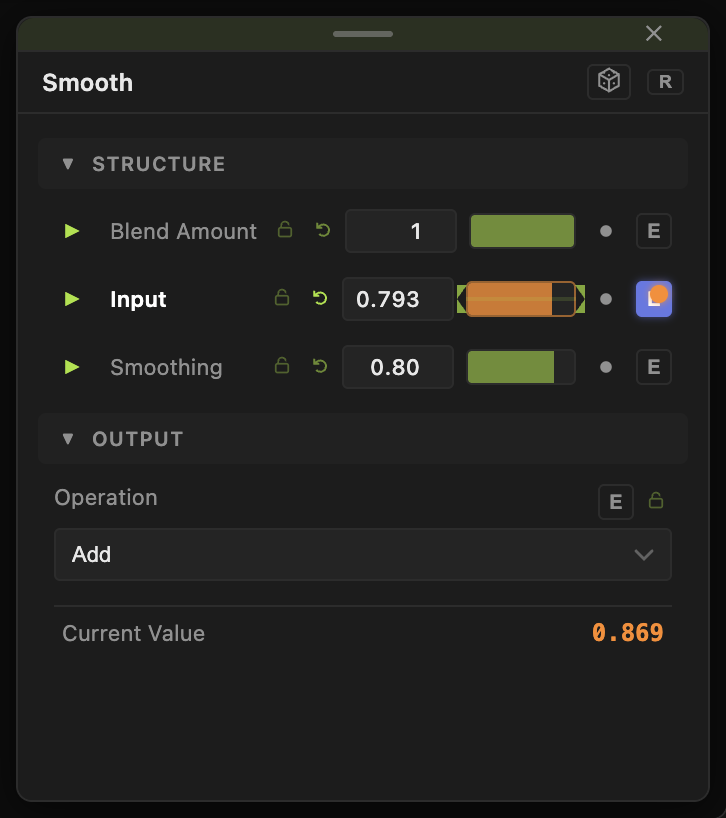

Parameters
- Smoothing (0–0.99, default 0.8).
Every slider has a per-parameter animation bar and can itself be driven by another modifier.
Examples
Calm MIDI — a MIDI modifier into Smooth at 0.9.
Troubleshooting
The parameter does not move — check the bound parameter's Operation at the port. At Multiply against a value of 0 the result stays 0.
The value lags too much — lower Smoothing, or use Lag for separate rise and fall times.
